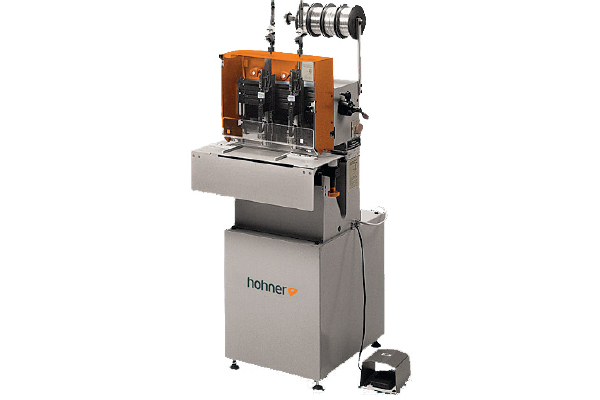

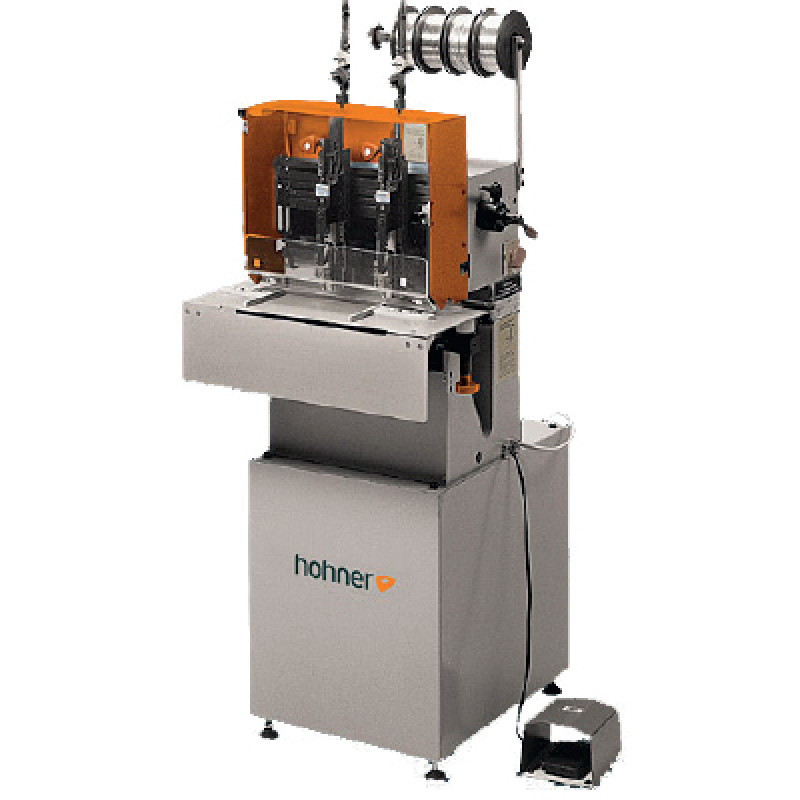

Hohner Orion-2

AED0.00 0% Off AED0.00

Equipped as standard with Universal 52/85 stitching heads. It is possible to fit up to four of these heads to the machine.
■ Standard and loop stitching or mixed applications
■ Perfectly suitable as a stand-alone machine, for the completion of a whole system and/or test unit
Maximum stitching thickness 8 mm for standard stitching
■ Easily convertible stitching table from pad stitching (flat) to brochures (saddle)
■Many varieties of exchange parts sets for a wide range of staple options are available to fit at a later stage.
■ Simultaneous and central adjustment of stitching thickness and wire length of all heads with only one lever
■ A backstop and two side lays are fully adjustable for accurate and easy positioning of the staples,
■ Extremely easy for the operator to change from one format to another.
■ Perfectly suitable for small production runs, sample stitching or off-line applications
■ Maximum stitching per head: 206 staples per minute
■ Table size 550 x 280 mm.

In stock
Capability and formats
Mechanic cycles per minute206
Stitching table size [mm]550 x 280
Working height [mm]845
Throat depth from clincher box
to machine body [mm] for pad stitching
Throat depth from clincher box
to machine body [mm] for saddle stitching
Minimum staple distance [mm]52 – 74
Maximum staple distance [mm]330
Narrow Stitching heads
Maximum distance between staples330
Stitching head (standard)52/8-S
Stitching head (optional)43/6-S
Maximum number of stitching heads4
Crown width [mm]14
Stitching wire
Round wire (standard)No. 24 – 28*
(Ø 0,60 – 0,40 mm)
Wire for loop stitching on request
*wire sizes according to european norm
Other wire types on request
Max. stitching thickness
Clinched staple [mm]8
Loop stitching [mm] (Optional)3
Exchange parts for loop stitching up to [mm]depending on stitching head
All indications are depending on paper type and quality
Single cycle operated by foot switch
Type of stitching head43/6-S
Exchange parts for other types of wire
Exchange parts for loop stitching kit [mm]Ø 6.0, 8.0
Machine height [mm]1600
Floor space required [in mm LxWxH]744 x 550 x 1564
Maximum number of work stations1
Noise emmission [dB(A)]< 82
Power requirements
Power [kW]0,37
Tension [V]230/400
Frequency [Hz]50/3~*
*Other tension types on request
Net weight [kg]146
Gross weight [kg]184
Packaging dimensions [in mm LxWxH]1030 x 800 x 1540
